Steel Structure Workshop in Chile

  • 2022-06-04
Project time: 2018.12
Size(width x length x height): 42mx46mx5.8m
Area: 1932 m2
Location Chile

This client’s project is a farm product processing and manufacturing workshop. According to our client’s requirements and its use area, a 60x24x9m workshop program was designed.

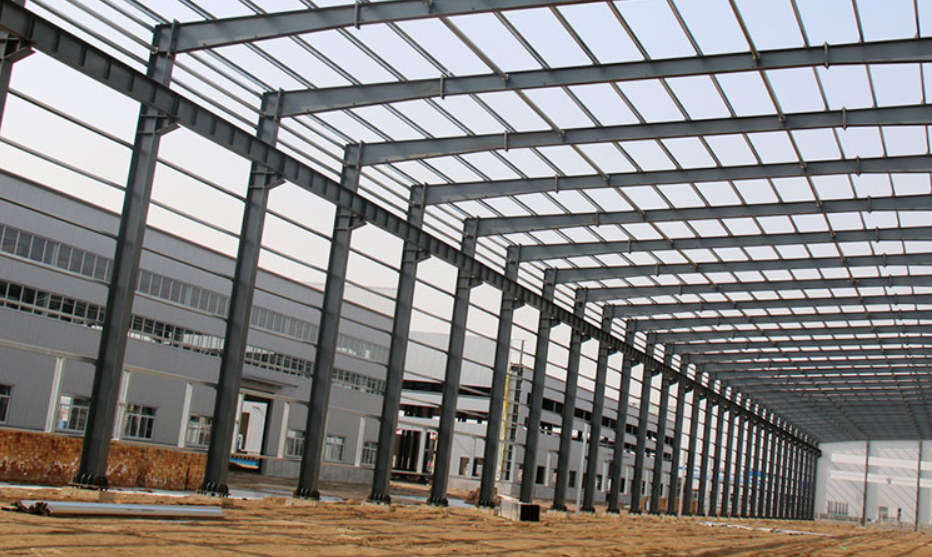

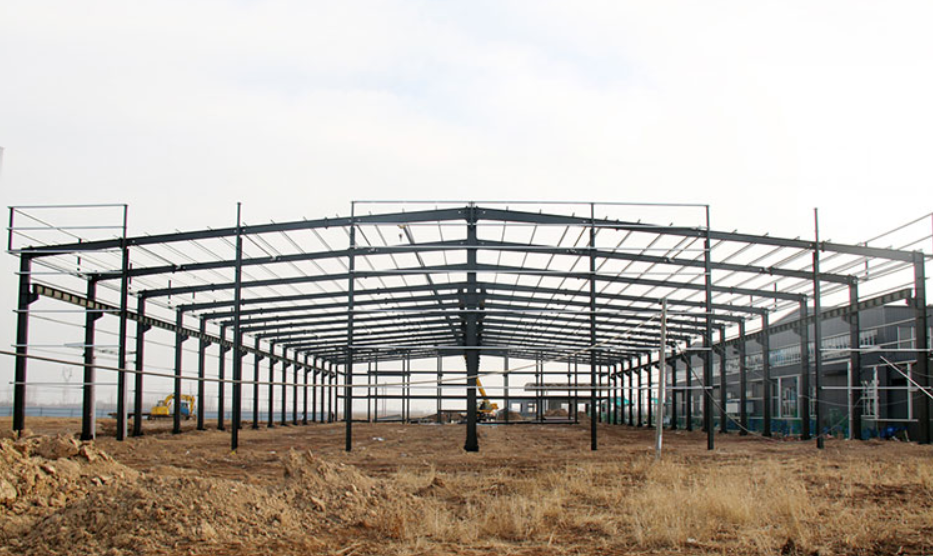

The main load-bearing system: steel frame beams, steel frame columns and wind-resistant columns are hot-rolled H-shaped steel and welded H-shaped steel to ensure the stability of the building and meet the customer’s local wind resistance.

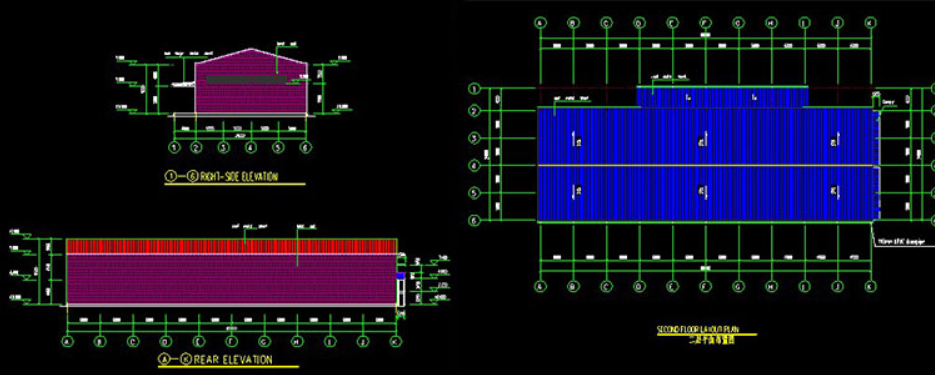

The design drawings of this project are as follows. It is the final design plan that our designers and customers have repeatedly confirmed. Customers will use cranes. According to their requirements, we have designed a workshop with crane beams for customers. The crane specifications are 5T/3T units, reminding customers that they cannot be overloaded.

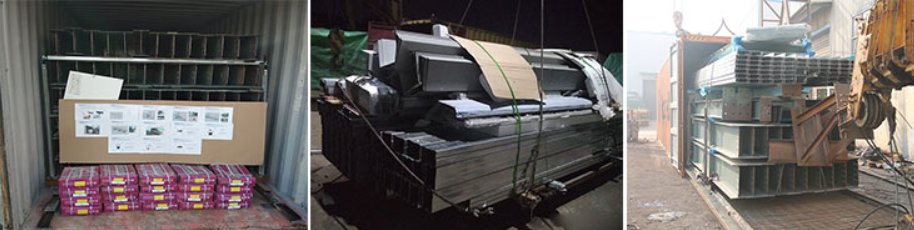

After the customer received the goods, the installation began. We up the customer’s installation progress in time, and gave professional and timely answers to the problems during the installation process. The customers are very satisfied with our products and services.

If you are interested in out products,plz give us the following information:

(1) Dimension: Length, width, height, eave height, roof pitch, etc.

(2) Doors and windows: Dimension, quantity, position.

(3) Local climate: Wind speed, snow load, seismic magnitude etc.

(4) Insulation material: Panel type, sandwich materials, sandwich thickness

(5) Crane beam: Do you need crane beam inside the steel structure? And its load.

(6) Is there any materials that are not allowed to import to the country where the structure is planning to use?

(7) If you have other requirements, such as fire proofing, insulated roof, etc. Please also inform us.

(8) It’s better if you have your own drawings or pictures. Please send them to us.
